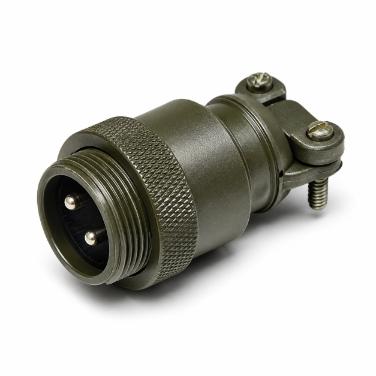

Image for reference only. See product specifications for details.
MS3101A14S-9S
MS3101A14S-9S: cable recepatcle, 2 female socket contacts, Size 16, shell size 14S, insert 14S-9, silver-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3101A14S-9S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 14S |
| Insert Arrangement: | 14S-9 |
| Contacts: | 2 Socket (Female) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E14S-9S / MS3101F14S-9S |
