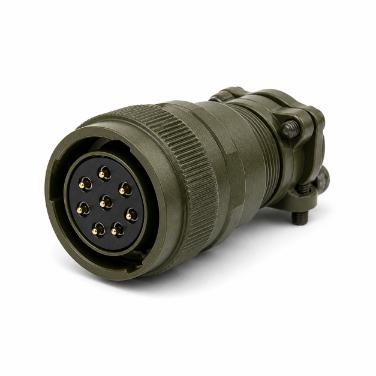

MS3101A20-16P
The MS3101A20-16P is a cable recepatcle with 9 male pin contacts, 7 x Size 16, 1 x Size 12, shell size 20, and insert arrangement 20-16. It features an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles.
- Part Number: MS3101A20-16P
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 20 |
| Insert Arrangement: | 20-16 |
| Contacts: | 9 Pin (Male) |
| Contact Size: | 7 x Size 16, 1 x Size 12 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16-20 AWG, 12-14 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13, 23 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E20-16P / MS3101F20-16P |
