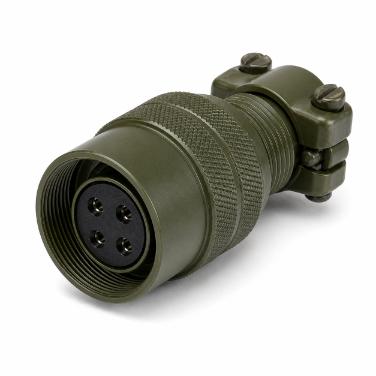

Image for reference only. See product specifications for details.
MS3101A22-22S
MS3101A22-22S is a cable recepatcle with 4 female socket contacts, Size 8, 22 shell size, and 22-22 insert arrangement. It has an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3101A22-22S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 22 |
| Insert Arrangement: | 22-22 |
| Contacts: | 4 Socket (Female) |
| Contact Size: | Size 8 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 8-10 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 46 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E22-22S / MS3101F22-22S |
