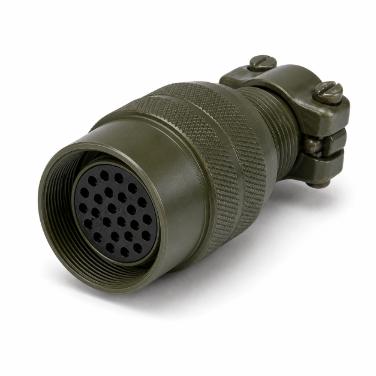

Image for reference only. See product specifications for details.
MS3101A24-28S
The MS3101A24-28S is a cable recepatcle with 24 female socket contacts, Size 16, shell size 24, and insert arrangement 24-28. It features an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles.
- Part Number: MS3101A24-28S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 24 |
| Insert Arrangement: | 24-28 |
| Contacts: | 24 Socket (Female) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / INST |
| Operating Voltage: | 250 V DC / 200 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E24-28S / MS3101F24-28S |
