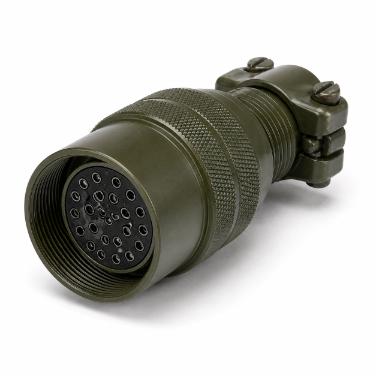

Image for reference only. See product specifications for details.
MS3101A28-11S
The MS3101A28-11S cable recepatcle features 22 female socket contacts, 18 x Size 16, 4 x Size 12, 28-11 insert arrangement, and threaded / screw mating. Built with an aluminium shell with a military green finish, it includes silver-plated contacts and supports 500+ mating cycles.
- Part Number: MS3101A28-11S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 28 |
| Insert Arrangement: | 28-11 |
| Contacts: | 22 Socket (Female) |
| Contact Size: | 18 x Size 16, 4 x Size 12 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16-20 AWG, 12-14 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13, 23 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E28-11S / MS3101F28-11S |
