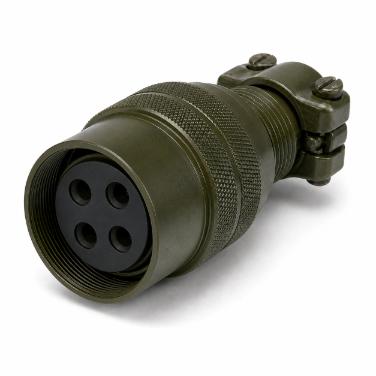

Image for reference only. See product specifications for details.
MS3101A32-17S
MS3101A32-17S: cable recepatcle, 4 female socket contacts, Size 4, shell size 32, insert 32-17, silver-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3101A32-17S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 32 |
| Insert Arrangement: | 32-17 |
| Contacts: | 4 Socket (Female) |
| Contact Size: | Size 4 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 4-6 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 80 / D |
| Operating Voltage: | 1250 V DC / 900 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3101E32-17S / MS3101F32-17S |
