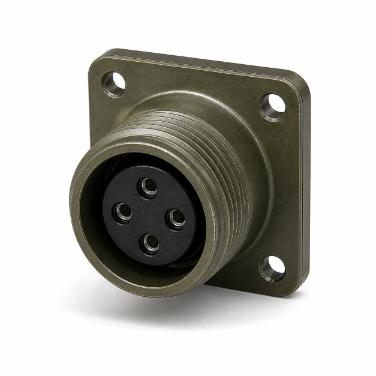

Image for reference only. See product specifications for details.
MS3102A14S-2S
MS3102A14S-2S is a box mount receptacle with 4 female socket contacts, Size 16, 14S shell size, and 14S-2 insert arrangement. It has an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3102A14S-2S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Box Mount Receptacle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 14S |
| Insert Arrangement: | 14S-2 |
| Contacts: | 4 Socket (Female) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / INST |
| Operating Voltage: | 250 V DC / 200 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Flange |
| Equivalent / Alternate Part Numbers: | MS3102E14S-2S / MS3102R14S-2S |
