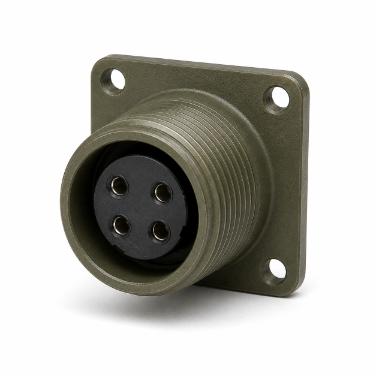

Image for reference only. See product specifications for details.
MS3102A18-10S
MS3102A18-10S: box mount receptacle, 4 female socket contacts, Size 12, shell size 18, insert 18-10, silver-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3102A18-10S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Box Mount Receptacle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 18 |
| Insert Arrangement: | 18-10 |
| Contacts: | 4 Socket (Female) |
| Contact Size: | Size 12 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 12–14 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 23 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Flange |
| Equivalent / Alternate Part Numbers: | MS3102E18-10S / MS3102R18-10S |
