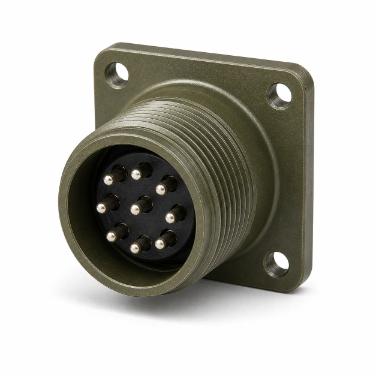

Image for reference only. See product specifications for details.
MS3102A18-1P
MS3102A18-1P is configured with 10 male pin contacts, Size 16 in a 18 shell, supplied as a box mount receptacle. It uses an aluminium shell with a military green finish with silver-plated contacts and is rated for 500+ mating cycles.
- Part Number: MS3102A18-1P
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Box Mount Receptacle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 18 |
| Insert Arrangement: | 18-1 |
| Contacts: | 10 Pin (Male) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / A(B,C,F,G) INST(A,D,E,H,I,J) |
| Operating Voltage: | 700 / 250 V DC / 500 / 200 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Flange |
| Equivalent / Alternate Part Numbers: | MS3102E18-1P / MS3102R18-1P |
