MS3102A20-16S

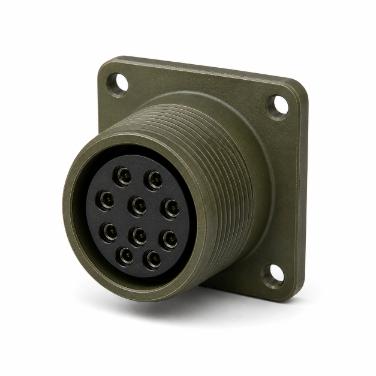

MS3102A20-16S: box mount receptacle, 9 female socket contacts, 7 x Size 16, 1 x Size 12, shell size 20, insert 20-16, silver-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3102A20-16S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Box Mount Receptacle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 20 |
| Insert Arrangement: | 20-16 |
| Contacts: | 9 Socket (Female) |
| Contact Size: | 7 x Size 16, 1 x Size 12 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16-20 AWG, 12-14 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13, 23 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Flange |
| Equivalent / Alternate Part Numbers: | MS3102E20-16S / MS3102R20-16S |
