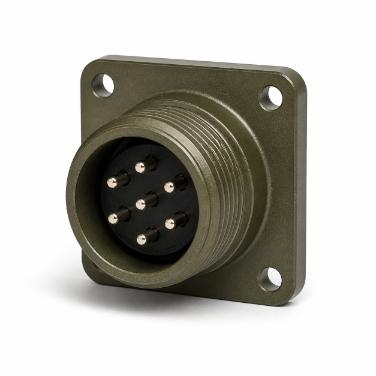

Image for reference only. See product specifications for details.
MS3102A24-10P
MS3102A24-10P is a box mount receptacle with 7 male pin contacts, Size 8, 24 shell size, and 24-10 insert arrangement. It has an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3102A24-10P
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Box Mount Receptacle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 24 |
| Insert Arrangement: | 24-10 |
| Contacts: | 7 Pin (Male) |
| Contact Size: | Size 8 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 8-10 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 46 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Flange |
| Equivalent / Alternate Part Numbers: | MS3102E24-10P / MS3102R24-10P |
