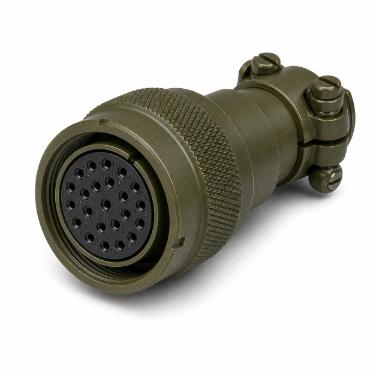

Image for reference only. See product specifications for details.
MS3106A24-28S
MS3106A24-28S: cable plug, 24 female socket contacts, Size 16, shell size 24, insert 24-28, silver-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3106A24-28S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 24 |
| Insert Arrangement: | 24-28 |
| Contacts: | 24 Socket (Female) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / INST |
| Operating Voltage: | 250 V DC / 200 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3106E24-28S / MS3106F24-28S |
