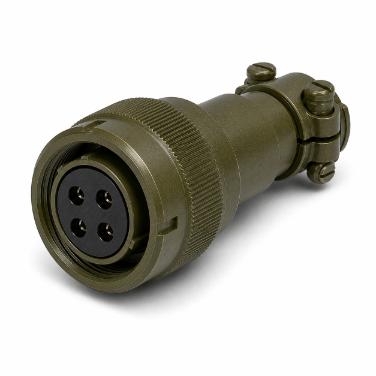

Image for reference only. See product specifications for details.
MS3106A32-17P
The MS3106A32-17P is a cable plug with 4 male pin contacts, Size 4, shell size 32, and insert arrangement 32-17. It features an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles.
- Part Number: MS3106A32-17P
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 32 |
| Insert Arrangement: | 32-17 |
| Contacts: | 4 Pin (Male) |
| Contact Size: | Size 4 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 4-6 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 80 / D |
| Operating Voltage: | 1250 V DC / 900 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3106E32-17P / MS3106F32-17P |
