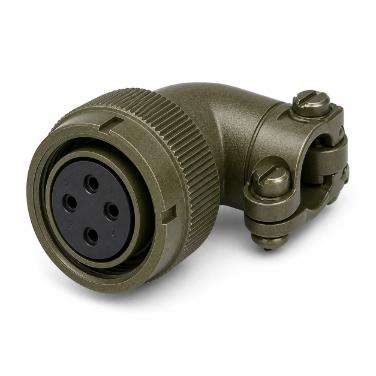

Image for reference only. See product specifications for details.
MS3108A16S-8S
MS3108A16S-8S is a 90° cable plug with 5 female socket contacts, Size 16, 16S shell size, and 16S-8 insert arrangement. It has an aluminium shell with a military green finish, silver-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3108A16S-8S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: 90° Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 16S |
| Insert Arrangement: | 16S-8 |
| Contacts: | 5 Socket (Female) |
| Contact Size: | Size 16 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16–20 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3108E16S-8S / MS3108F16S-8S |
