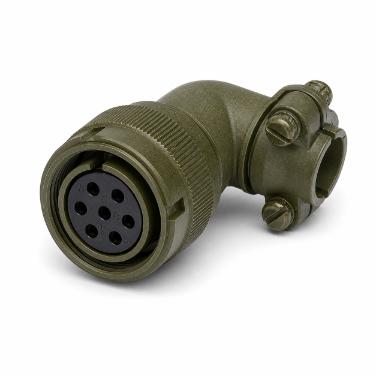

Image for reference only. See product specifications for details.
MS3108A24-10S
MS3108A24-10S: 90° cable plug, 7 female socket contacts, Size 8, shell size 24, insert 24-10, silver-plated contacts, aluminium shell with military green finish, 500+ mating cycles.
- Part Number: MS3108A24-10S
- MIL Type / Specification: MIL-DTL-5015
- Shell: Aluminium, Military green
- Connector Style: 90° Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 24 |
| Insert Arrangement: | 24-10 |
| Contacts: | 7 Socket (Female) |
| Contact Size: | Size 8 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 8-10 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 46 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3108E24-10S / MS3108F24-10S |
