MS3108F20-16P

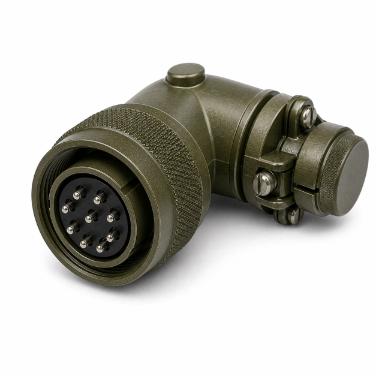

MS3108F20-16P is configured with 9 male pin contacts, 7 x Size 16, 1 x Size 12 in a 20 shell, supplied as a 90° cable plug. It uses an aluminium shell with a military green finish with silver-plated contacts and is rated for 500+ mating cycles.
- Part Number: MS3108F20-16P
- MIL Type / Specification: MIL-C-5015
- Shell: Aluminium, Military green
- Connector Style: 90° Cable Plug
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 20 |
| Insert Arrangement: | 20-16 |
| Contacts: | 9 Pin (Male) |
| Contact Size: | 7 x Size 16, 1 x Size 12 AWG |
| Contact Plating: | Silver |
| Contact Termination: | Solder |
| Wire Gauge Range: | 16-20 AWG, 12-14 AWG |
| Mating Style: | Threaded / Screw |
| Current / Service Rating: | 13, 23 / A |
| Operating Voltage: | 700 V DC / 500 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | MS3108A20-16P |
