MS3111F14-12P

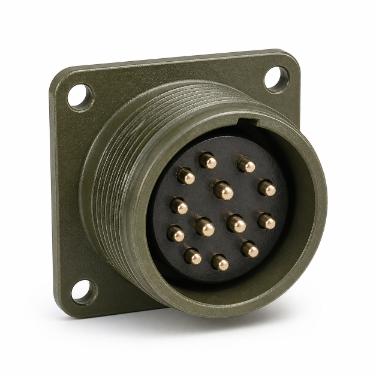

MS3111F14-12P is configured with 12 male pin contacts, 8 x Size 20, 4 x Size 16 in a 14 shell, supplied as a cable recepatcle. It uses an aluminium shell with a military green finish with gold-plated contacts and is rated for 500+ mating cycles.
- Part Number: MS3111F14-12P
- MIL Type / Specification: MIL-DTL-26482 Series I
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 14 |
| Insert Arrangement: | 14-12 |
| Contacts: | 12 Pin (Male) |
| Contact Size: | 8 x Size 20, 4 x Size 16 AWG |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Wire Gauge Range: | 20-24 AWG, 16-20 AWG |
| Mating Style: | Bayonet |
| Current / Service Rating: | 7.5, 13 / I |
| Operating Voltage: | 850 V DC / 600 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | KPT01F14-12P / 62IN11F14-12P / PT01E14-12P |
