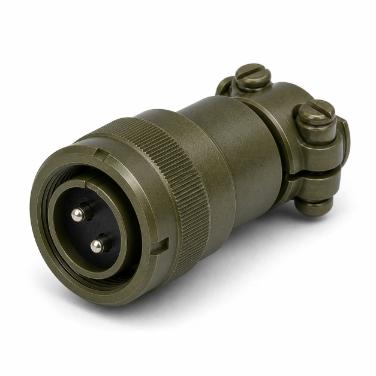

Image for reference only. See product specifications for details.
MS3111F8-2P
MS3111F8-2P is configured with 2 male pin contacts, Size 20 in a 8 shell, supplied as a cable recepatcle. It uses an aluminium shell with a military green finish with gold-plated contacts and is rated for 500+ mating cycles.
- Part Number: MS3111F8-2P
- MIL Type / Specification: MIL-DTL-26482 Series I
- Shell: Aluminium, Military green
- Connector Style: Cable Recepatcle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 8 |
| Insert Arrangement: | 8-2 |
| Contacts: | 2 Pin (Male) |
| Contact Size: | Size 20 AWG |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Wire Gauge Range: | 20–24 AWG |
| Mating Style: | Bayonet |
| Current / Service Rating: | 7.5 / I |
| Operating Voltage: | 850 V DC / 600 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Strain Relief Cable Clamp |
| Equivalent / Alternate Part Numbers: | KPT01F8-2P / 62IN11F8-2P / PT01E8-2P |
