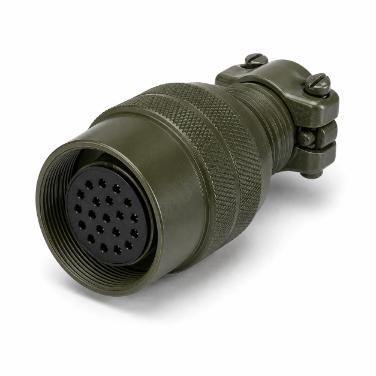

Image for reference only. See product specifications for details.
MS3112E14-12S
MS3112E14-12S is a box mount receptacle with 12 female socket contacts, 8 x Size 20, 4 x Size 16, 14 shell size, and 14-12 insert arrangement. It has an aluminium shell with a military green finish, gold-plated contacts, and 500+ mating cycles. Contact us for pricing, availability and volume orders.
- Part Number: MS3112E14-12S
- MIL Type / Specification: MIL-DTL-26482 Series I
- Shell: Aluminium, Military green
- Connector Style: Box Mount Receptacle
Specifications
| Product Category: | Commercial Circular MIL Spec Connector |
|---|---|
| Shell Size: | 14 |
| Insert Arrangement: | 14-12 |
| Contacts: | 12 Socket (Female) |
| Contact Size: | 8 x Size 20, 4 x Size 16 AWG |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Wire Gauge Range: | 20-24 AWG, 16-20 AWG |
| Mating Style: | Bayonet |
| Current / Service Rating: | 7.5, 13 / I |
| Operating Voltage: | 850 V DC / 600 V AC rms |
| Temperature Range: | -55°/+125°C |
| Backshell Type: | Flange |
| Equivalent / Alternate Part Numbers: | KPT02E14-12S / 62IN12E14-12S / PT02E14-12S |
